Product Details
Place of Origin: Chongqing, China
Brand Name: City Navigation
Model Number: MD-TSA-40A , MD-TSA-48A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $200.00/pieces 10-49 pieces
Packaging Details: Wooden Box
Supply Ability: 100000 Piece/Pieces per Year
Condition: |
New, 100%new |
Rated Current: |
16A/32A /40A/48A |
Rated Voltage: |
AC120/240V |
Quality: |
High-Quality |
Therminal Temperature Rise: |
<45K |
MOQ: |
10 Pcs |
Withstand Voltage: |
2000V |
Working Temperature: |
-30°C ~+50°C |
Contact Impedance: |
0.5m Max |
Certificate: |
CE TUV ULApproved |
Condition: |
New, 100%new |
Rated Current: |
16A/32A /40A/48A |
Rated Voltage: |
AC120/240V |
Quality: |
High-Quality |
Therminal Temperature Rise: |
<45K |
MOQ: |
10 Pcs |
Withstand Voltage: |
2000V |
Working Temperature: |
-30°C ~+50°C |
Contact Impedance: |
0.5m Max |
Certificate: |
CE TUV ULApproved |

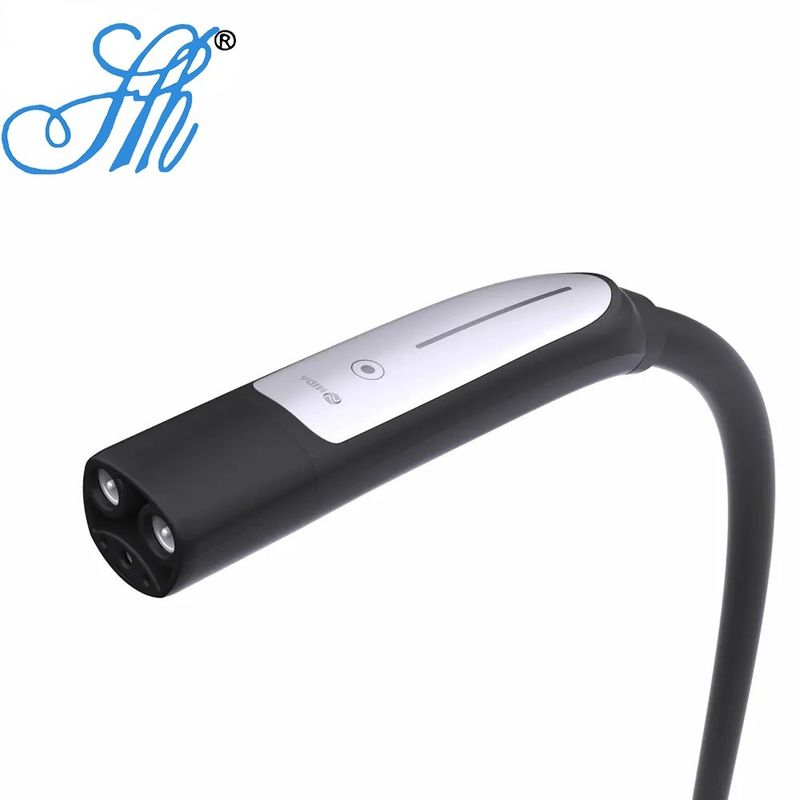

Item | Tesla Plug with EV Cable | ||
Product Model | MD-TSA-40A , MD-TSA-48A | Terminal Rise | ＜50K |
Rated Current | 40A / 48A | Operating Temperature | -30°C~+50°C |
Operation Voltage | AC 120V / AC 240V | Impact Insertion Force | >300N |
Insulation Resistance | ＞1000MΩ（DC 500V） | Waterproof Degree | IP55 |
Withstand Voltage | 2000V | Cable Color | Black ,Orange, Green, Blue etc. |
Pin Material | Copper Alloy, Silver Plating | Cable Length | (5Meter ,10Meter) The length of the cable can be customized |
Shell Material | Thermoplastic,Flame Retardant Grade UL94 V-0 | Cable Protection | Reliability of materials,antiflaming,pressure-resistant, abrasion resistance |
Mechanical Life | No-Load Plug In / Pull Out ＞10000 Times | impact resistance and high oil | |
Contact Resistance | 0.5mΩ Max | Certification | UL,TUV,CE Approved |
